Overview
Dialogs work best when used for short tasks or to alert the user to task relevant information. Dialogs are useful in many scenarios; they are less disorientating than navigating a user to a new page for simple tasks or knowledge gathering. However, dialogs are disruptive and can be distracting to the user. Use them sparingly.
A dialog is triggered by a user’s action, appears on top of the main page content, and is persistent until dismissed. The purpose of a dialog should be immediately apparent to the user, with a clear and obvious path to completion.

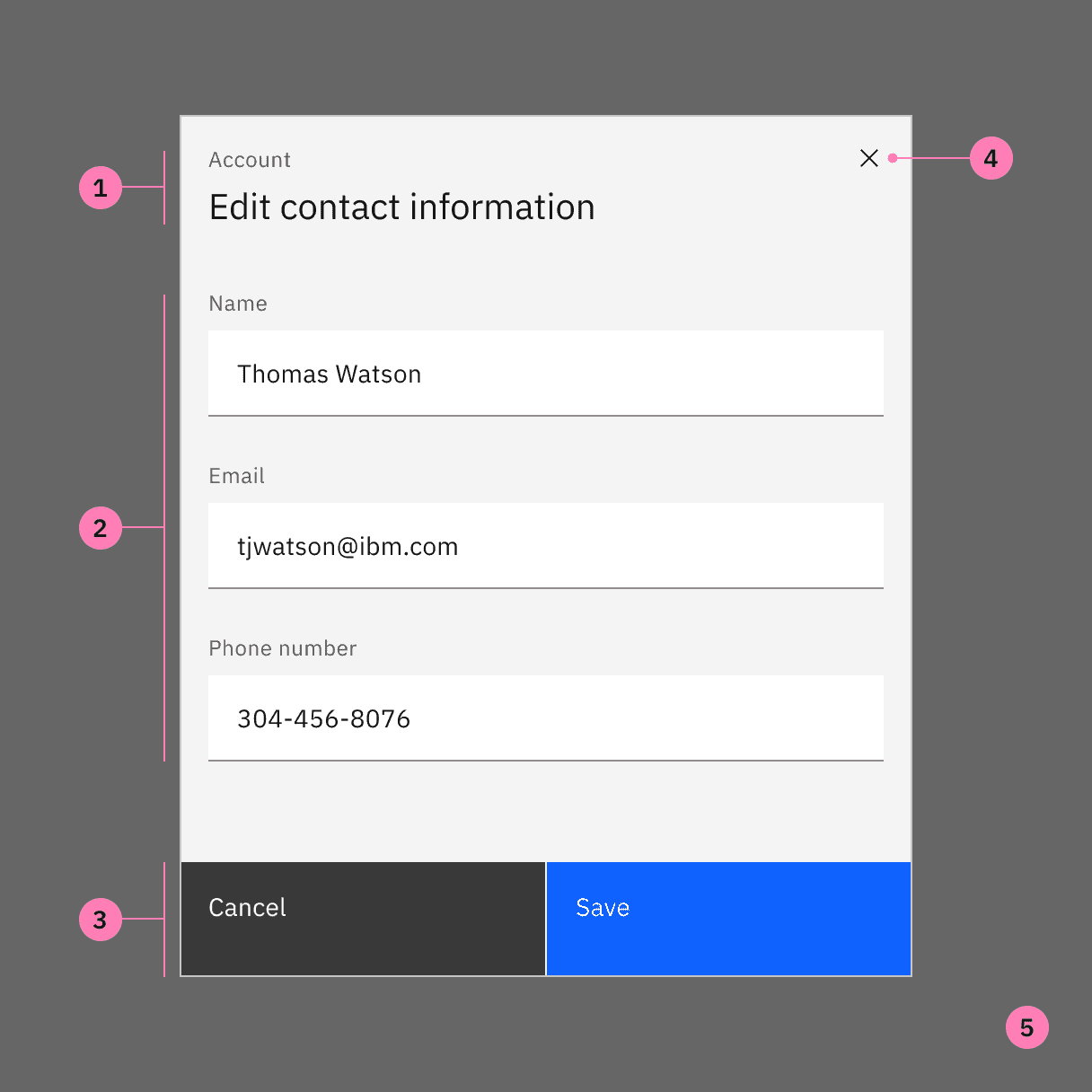

- Header: Includes a title, optional label, and the close icon. The title should be brief and clearly describe the dialogs’s task or purpose. Use the optional label above the title set the context for the information in the dialog.
- Body: Contains the information and/or controls needed to complete the dialog’s task. It can include message text and components.
- Actions: The main actions needed to complete or cancel the dialog task. Button groupings change based on modal variant. Use descriptive words for the actions like Add, Delete, Save and avoid vague words like Done or OK.
- x: The close
xicon will close the dialog without submitting any data. - Overlay: (Modal dialogs only) Screen overlay that obscures the on page content.
Dialog types
There are two types of dialogs, modal and non-modal.
A modal dialog triggers a state (or mode) that focuses the user’s attention exclusively on one task or piece of relevant information. When a modal dialog is active, the content of the underneath page is obscured and inaccessible until the user completes the task or dismisses the modal.
When a non-modal dialog is active the user can continue viewing and interacting with the main page while the dialog is open. Non-modal dialogs are commonly used to present non-critical information or optional user tasks.
Type | Usage | Context |
|---|---|---|
Modal | Use to present critical information or request required input needed to complete a workflow. | Focuses the users attention exclusively on one task or piece of information. On-page content is obscured from the user while the modal dialog is open. |
Non-modal | Use to present non-critical information or optional user tasks. | On-page content can be accessed and interacted with while the dialog is still open. |

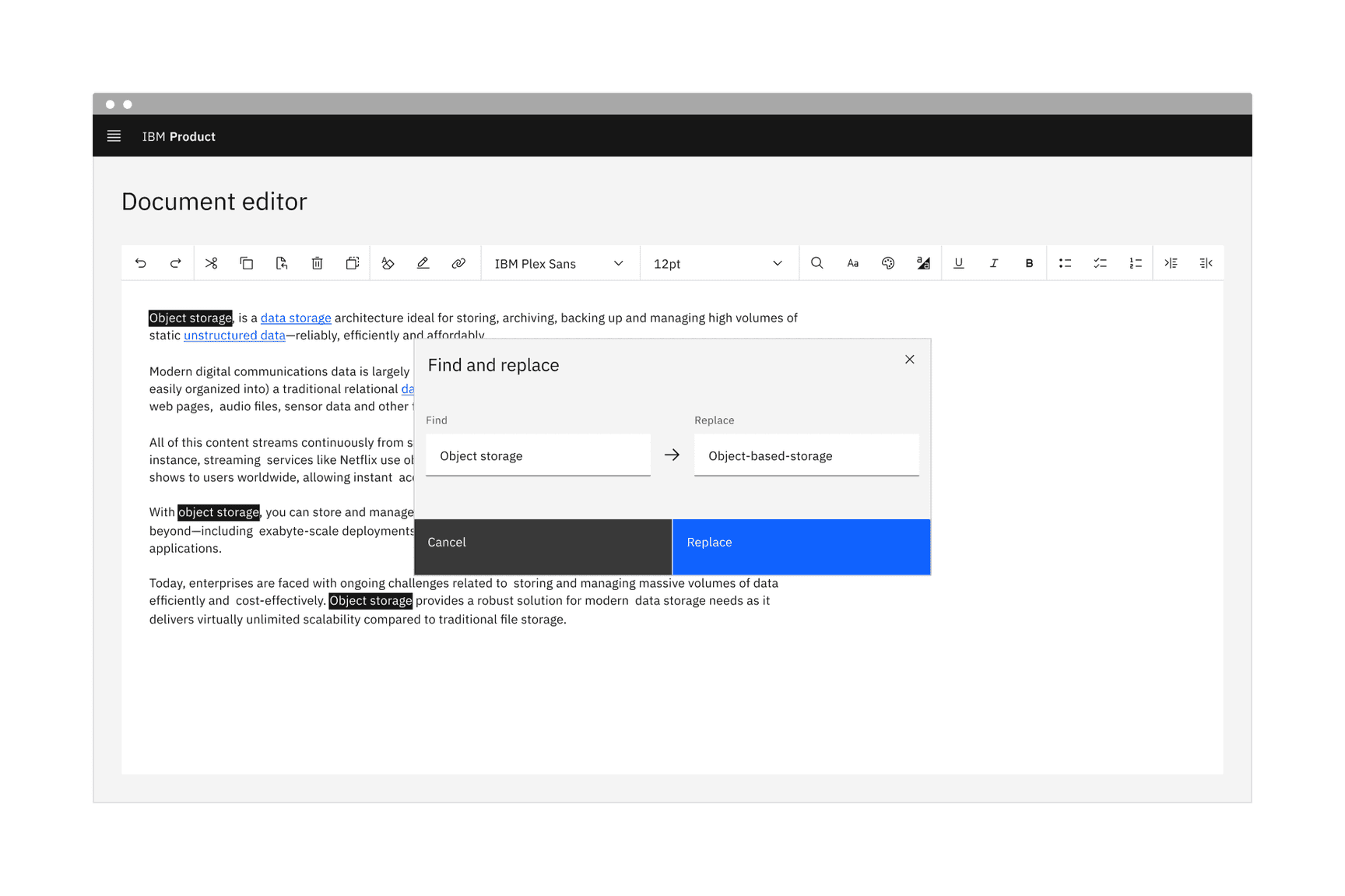

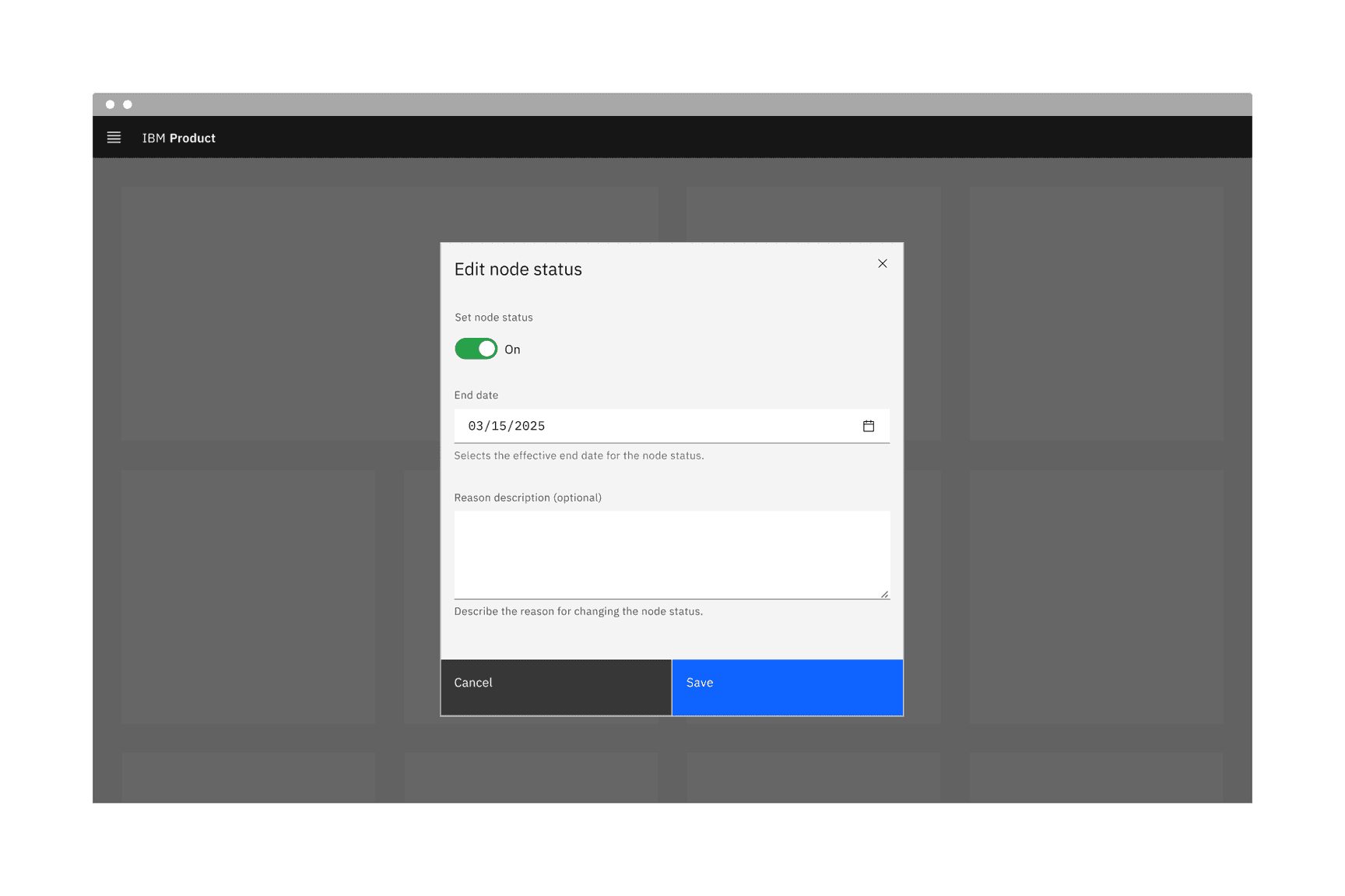

Modal dialog (left) and non-modal dialog (right)
Use dialogs sparingly
Don’t overuse dialogs. They are disruptive and can easily annoy the user if used incorrectly or too frequently. When dialogs are used for non-workflow related tasks, it is likely a user will start ignoring or dismissing the dialogs without fully understanding the content. This can cause users to make hurried or impulsive choices when dealing with more critical dialogs.
Dialogs should be user initiated
A user action, such as clicking a button, should trigger the dialog to open. Don’t interrupt the user by opening a dialog when they aren’t expecting it. Avoid system generated pop-ups that distract the user while working, such as Net Promoter Score. Triggers can either be a direct or indirect consequence of a user’s action. An example of an indirect action is a user closing a tab with unsaved content that then causes a dialog to ask if they want to save their changes before closing. If the system is autogenerating an alert that is not a consequence of a user’s action, but a response to processes happening in the background, then a toast notification should be used instead.
Keep dialog tasks simple and focused
Dialog tasks should be direct and easy to complete. Avoid feature creep in dialogs where a once simple dialog has become bloated with interactions. When deciding to use a dialog consider how the task could expanded in the future and if a dialog will be able to effectively incorporate additions. An example of a simple task would adding a new item to a list where the item details are added and submitted via a dialog.
Modal dialogs
Use a modal dialog to present critical information or request user input needed to complete a user’s workflow. Modal dialogs are disruptive and should be used sparingly. When active, a user is blocked from the on-page content and cannot return to their previous workflow until the modal task is completed or the user dismisses the modal. Any information or input requested should be directly related to the user’s task at hand.
Modal dialogs are commonly used for short and non-frequent tasks, such as editing or management tasks. If a user needs to repeatedly perform a task, consider making the task do-able from the main page. A modal dialog adds to a workflow’s interaction cost; it takes the user out of their previous context and requires additional actions to complete and dismiss. When considering, ask is this critical to their current workflow?
Confirm a user decision
Use a modal dialog to confirm user decisions. Clearly describe the action being confirmed and explain any potential consequences that it may cause. Both the title and the button should reflect the action that will occur. If the action is destructive or irreversible then use a transactional danger modal.
Modals prevent access to the main page
Don’t use if additional information outside the modal needs to be consulted. While a modal dialog is active a user cannot interact with the main page and is restricted to only the information in the modal for making decisions. Modal tasks should be easy to complete with the limited information presented in the dialog itself. If a user needs access to additional information then consider using a full page instead.
Variant | Usage |
|---|---|
Presents information the user needs to be aware of concerning their current workflow. Contains no actions for the user to take. | |
Requires an action to be taken in order for the modal to be completed and closed. Contains a cancel and primary action buttons. | |
System requires an acknowledgement of the information from the user. Contains only a single button, commonly “OK”. | |
Requires several steps to be completed before it can be closed. Contains a cancel, previous and next/completion buttons. |
Dismissing variant modals
For passive modals:
- x: Clicking the close
xicon in the upper right will close the modal without submitting any data and return the user to its previous context. - Click elsewhere: Clicking outside the passive modal area will automatically close the modal.
- Esc: Press
ESCon the keyboard
For transactional, progress, and acknowledgement modals:
- Task completion: clicking the primary action will complete the task and automatically close the modal.
- Cancel button: clicking the cancel button will close the modal and return the user to its previous context. Cancel undoes all applied changes.
- x: Clicking the close
xicon in the upper right will close the modal without submitting any data and return the user to its previous context. - Esc: Press
ESCon the keyboard
Non-modal dialogs
Use non-modal dialogs to display non-critical information or optional tasks related to the user’s current workflow, like “find and replace”. A user still has access to the on-page content while the non-modal dialog is open and a response is not required to continue working. However, a non-modal dialog does require an action from the user to be dismissed.
When access to the page is needed
Use when a user needs to compare or refer to information in the main page alongside the modal. users can interact with the non-modal content and the on-page content simultaneously.
A non-modal dialog window can be moved from its original placement on the screen. This allows the user to access information that might otherwise be hidden by the dialog.
Aid or accelerate a user’s work flow
Use to perform tasks or present informational along side the main page content that can accelerate or aid a user’s workflow. For example, a “find and replace” dialog can help a user perform and automate edits quicker. The user can chose to automate the changes or navigate through the page by using the “find” feature and manually make updates.
Dismissing non-modal dialogs
There are several possible ways to exit a non-modal dialog.
- x: Clicking the close
xicon in the upper right will close the modal without submitting any data. - Cancel button: If a cancel button is used then clicking it will close the modal. Cancel undoes all applied changes.
- Esc: Press
ESCon the keyboard
Button groups: one button, two buttons, three buttons, and progress buttons.
Three buttons
When three buttons are needed, each is 25% of the dialog width and aligned to the right side of the dialog. Only the outmost right button is allowed to be a primary button with the other two being secondary buttons. If all three actions have the same weight then all three should be secondary buttons.
Progress indicator buttons
The three progress indicator buttons are: Cancel, Previous, Next. Each button’s width is 25% of the dialog window and are full bleed. Previous and Next should be grouped together and placed on the right half of the dialog, with Previous as a secondary button and Next as a primary button. The Cancel button is aligned to left side of the dialog and uses a ghost button.
In the last step of the sequence, the Next button label should change to reflect the final action.
Validation
Validate a user’s entries before the dialog is closed. If any entry is invalid then the dialog should remain open with the entry marked with an error state and include an inline error message. The message should inform the user what has happened and provide guidance on next steps or possible resolutions. Effective and immediate error messaging can help the user to understand the problem and how to fix it.
When possible, we recommend validating the user’s data before submission. This type of inline validation (aka client-side validation) should happen as soon as the field loses focus. This will help easily identify the elements that need to be corrected. On field error messages should disappear when the form criteria is met. If the data was not able to be submitted due to server-side issues then an inline notification should appear.
Decrease the chances of invalid data by using selection controls and bound entry controls components that provide users with specific input choices, for example radio buttons and dropdowns.

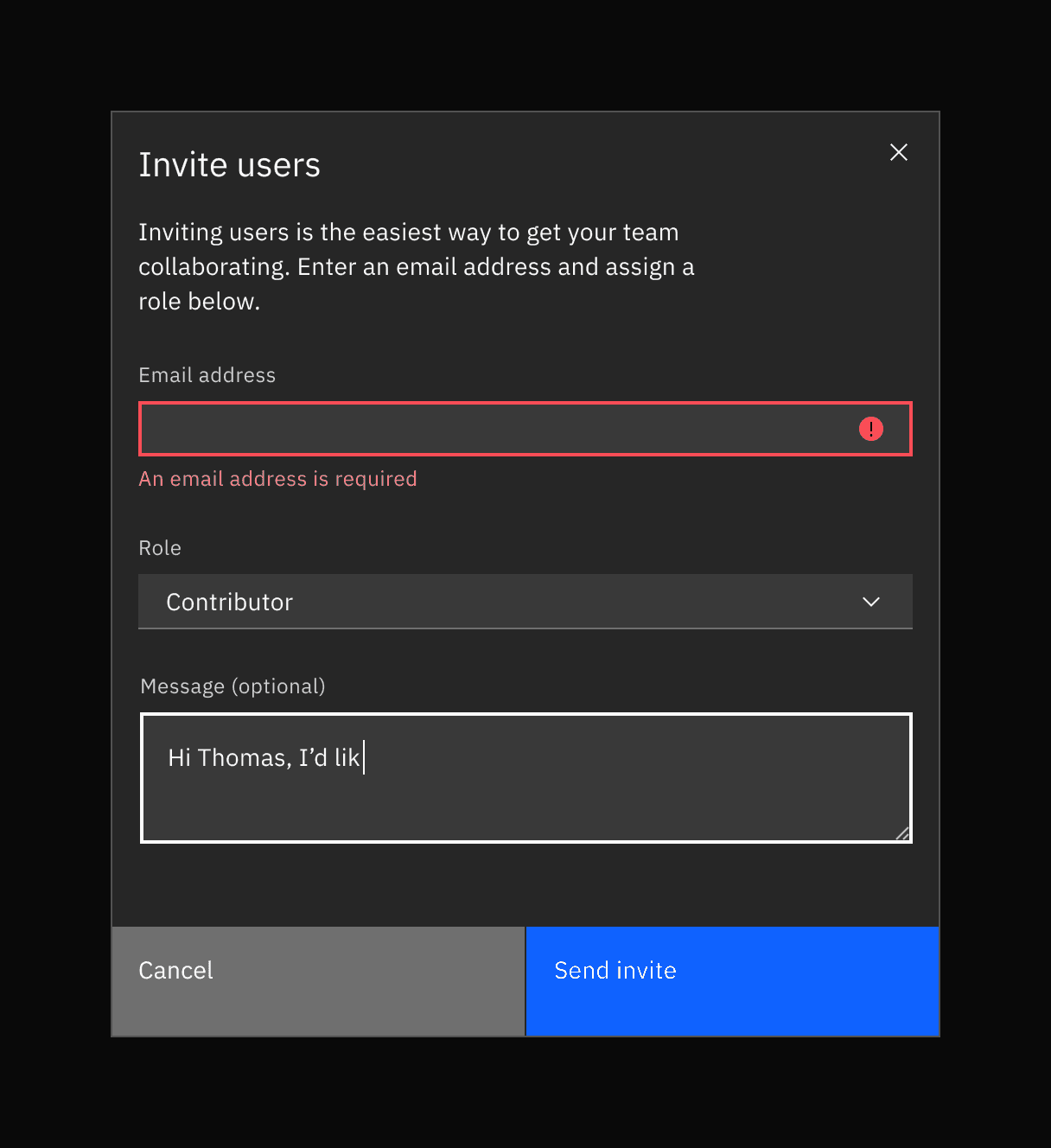

Real-time validation. The user has left the first required field empty.
Task completion and loading

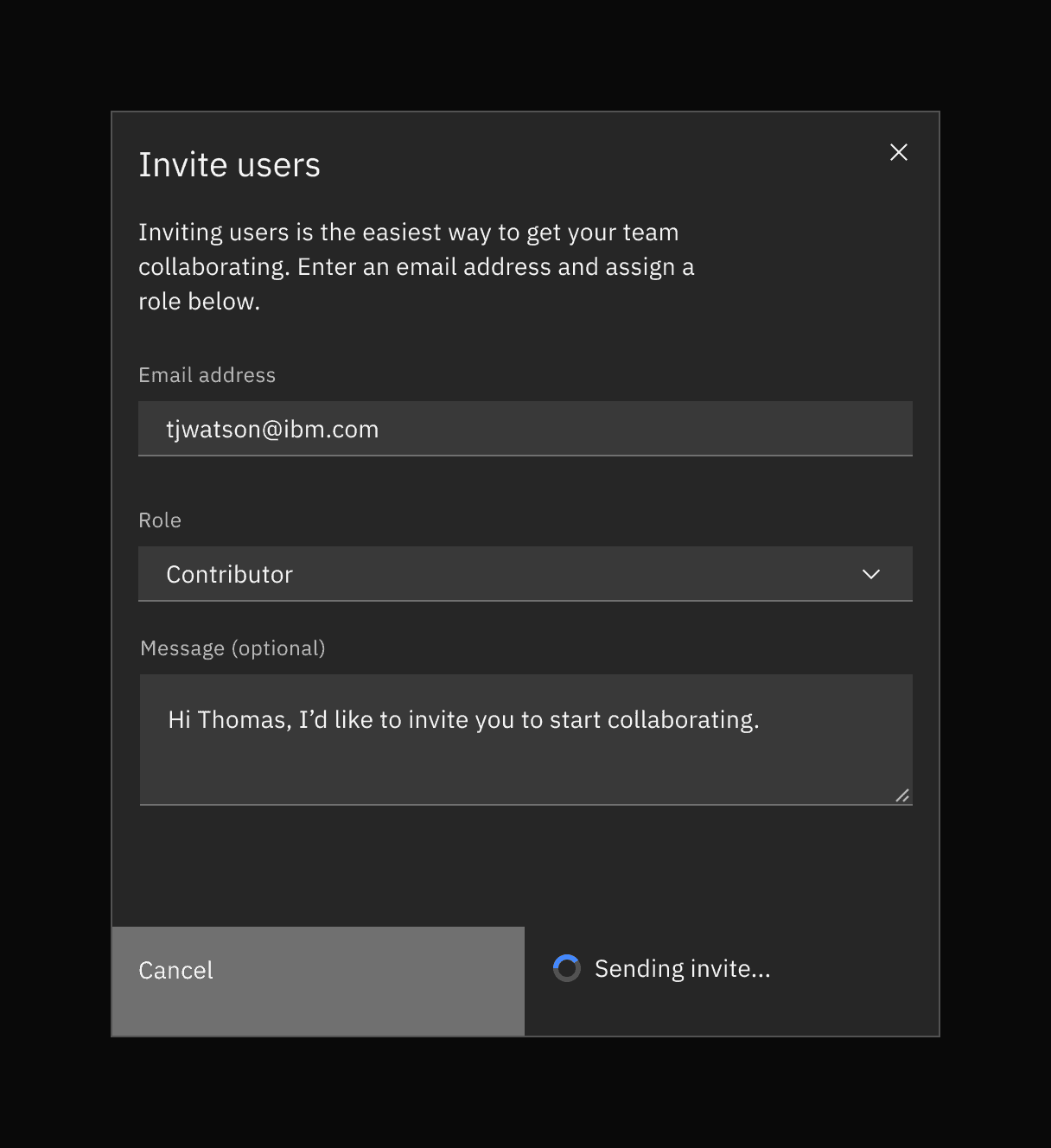

The task completion action should take place immediately. If a short loading period is needed then a loading spinner and overlay should appear on top of the modal body area with content disabled. The primary action button should be disabled while loading is in progress.
If the action requires more than a few seconds to complete, display progress information elsewhere on the screen to inform the user how long it will take to complete.
Using components
Appropriate components to use in a dialog include form inputs and controls that aid in collecting information from the user. Other components like content switcher and structured list can be used to organize information. When possible, avoid using complex components that can complicate task completion or prolong a user’s time in the modal. A user’s journey through the modal should be direct and short.
Avoid components that will direct the user away from the dialog
Avoid components like links that will take the user away from the current context and the task at hand. A dialog’s purpose is to focus the user’s attention on a particular task and should not encourage any action that is not related to that task’s completion.
Avoid components that hide information
When possible avoid components that hide information or choices from the user—like accordion and tabs—and require additional effort from the user to discover all the available content. Time spent in a modal should be minimal and only information needed to complete the task should be included. If there is too much information for a user to consume in a dialog context, consider using a full page instead.
Avoid complex interactions with data tables
When possible avoid using a data table in a dialog as it is a complex component with its own workflow and decision making that can overly complicate a user’s choice and task completion in relation to the dialog. If a data table is necessary then the tables should be kept as simple as possible with limited interactions. For example, you can use data table to make selections that will be incurred by the dialogs action but avoid preforming table functions like batch editing or batch actions inside the modal itself. For smaller sets of data or selections consider using a structured list, dropdown, or tile set instead.

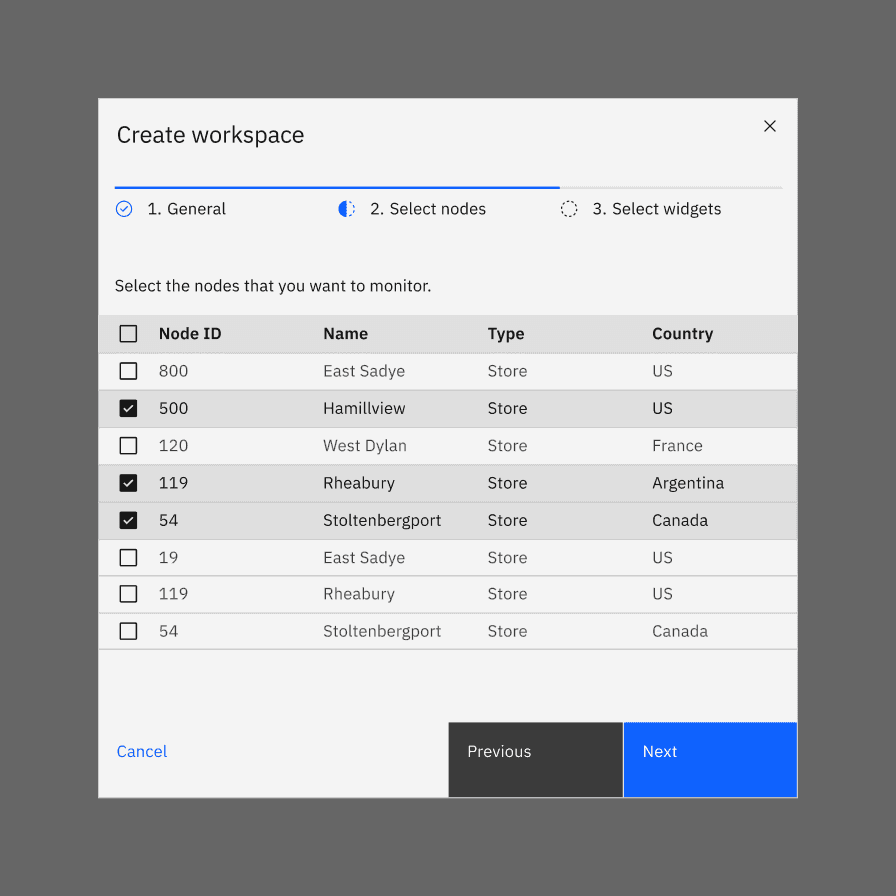

Do: keep data table interaction simple.

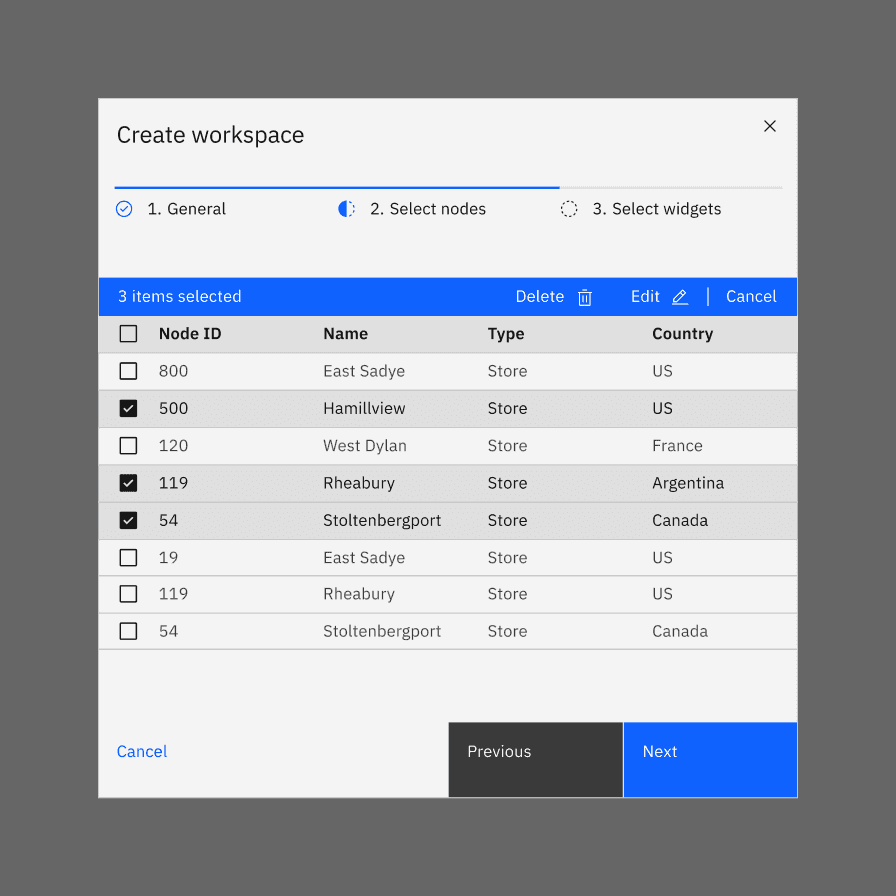

Don’t include complex interactions in data tables that are not necessary to complete the task at hand.
Focus
- Shift the focus into the dialog when triggered.
- After the dialog opens, initial focus should be set on the first focusable element in the modal.
- For modal dialogs, the focus should be trapped inside the dialog and must not move outside the modal until it is closed.
- After a modal dialog closes, focus should return to the element that invoked the modal.
Reference WCAG 2.4.3 Focus order success criterion for additional guidelines.
Do: after the dialog is opened, set focus to first focusable element.
Don’t set the first focus on the dialog button if there are inputs or selection to be made in the dialog.
ARIA
See WAI-ARIA Authoring Practices Modal Dialog Example, Accessibility Features section for best practices.
References
- Apple Human Interface Guidelines, Modality (2019)
- Apple Human Interface Guidelines, Dialogs (2019)
- Therese Fessenden, Modal & Nonmodal Dialogs: When (& When Not) to Use Them (Nielsen Norman Group, 2017)
- James Jacobs, Modern Enterprise UI design — Part 2: Modal dialogs (2019)
- Microsoft Docs, About Dialog Boxes (2019)
- Web Content Accessibility Guidelines (W3C, 2018)
