Text input

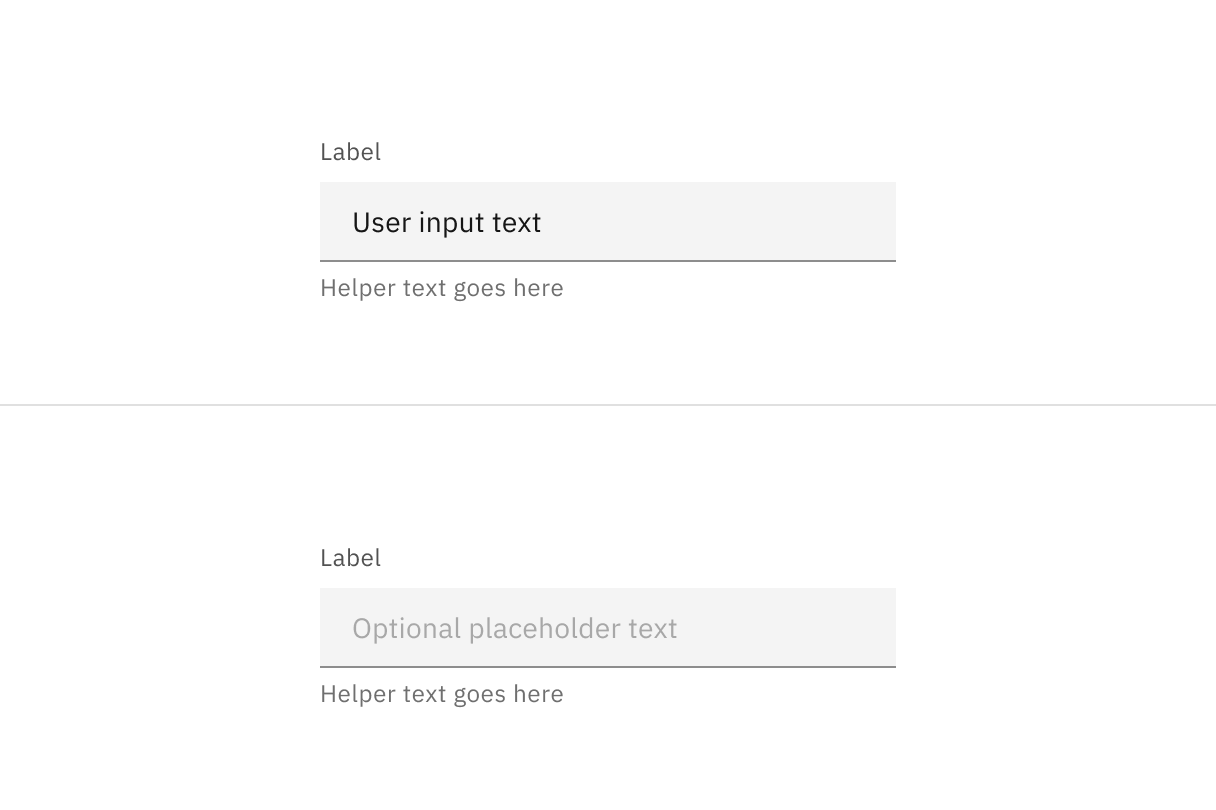

Text input color

Element	Property	Color token
Label	text-color	`$text-secondary`
Field text	text-color	`$text-primary`
Placeholder text	text-color	`$text-placeholder`
Helper text	text-color	`$text-helper`
Field	background-color	`$field` *
	border-bottom	`$border-strong` *

* Denotes a contextual color token that will change values based on the layer it is placed on.

State	Element	Property	Color token
Focus	Field	border	`$focus`
Invalid	Field	border	`$support-error`
	Error message	text-color	`$text-error`
	Error icon	svg	`$support-error`
Warning	Warning message	text-color	`$text-primary`
	Warning icon	svg	`$support-warning`
Disabled	Field	background	`$field` *
	Field (default)	border-bottom	transparent
	Field (fluid)	border-bottom	`$border-subtle` *
	Field text	text-color	`$text-disabled`
Read-only	Field (default)	background	transparent
	Field (fluid)	background	`$field` *
	Field text (default)	text-color	`$text-primary`
	Field text (fluid)	text-color	`$text-secondary`
	Field	border-bottom	`$border-subtle` *

* Denotes a contextual color token that will change values based on the layer it is placed on.

Examples of text input states in the default style

Element	Property	Color token
Label	text-color	`$text-secondary`
Field text	text-color	`$text-primary`
Placeholder text	text-color	`$text-placeholder`
Helper text	text-color	`$text-helper`
Field	background-color	`$field` *
	border-bottom	`$border-strong` *
View icon	svg	`$icon-primary`

* Denotes a contextual color token that will change values based on the layer it is placed on.

Example of an enabled password input in the default style

State	Element	Property	Color token
Hover	View icon	svg	`$icon-primary`
Focus	Field	border	`$focus`
Invalid	Field	border	`$support-error`
	Error message	text-color	`$text-error`
	Error icon	svg	`$support-error`
Warning	Warning message	text-color	`$text-primary`
	Warning icon	svg	`$support-warning`
Disabled	Field	background	`$field` *
	Field (default)	border-bottom	transparent
	Field (fluid)	border-bottom	`$border-subtle` *
	Field text	text-color	`$text-disabled`
Read-only	Field (default)	background	transparent
	Field (fluid)	background	`$field` *
	Field text (default)	text-color	`$text-primary`
	Field text (fluid)	text-color	`$text-secondary`
	Field	border-bottom	`$border-subtle` *
	View icon	svg	`$icon-primary`

* Denotes a contextual color token that will change values based on the layer it is placed on.

Examples of password input states in the default style

Text area color

Element	Property	Color token
Label	text-color	`$text-secondary`
Field text	text-color	`$text-primary`
Placeholder text	text-color	`$text-placeholder`
Helper text	text-color	`$text-helper`
Field	background-color	`$field` *
	border-bottom	`$border-strong` *

* Denotes a contextual color token that will change values based on the layer it is placed on.

Example of an enabled text area in the default style

State	Element	Property	Color token
Focus	Field	border	`$focus`
Invalid	Field	border	`$support-error`
	Error message	text-color	`$text-error`
	Error icon	svg	`$support-error`
Warning	Warning message	text-color	`$text-primary`
	Warning icon	svg	`$support-warning`
Disabled	Field	background	`$field` *
	Field (default)	border-bottom	transparent
	Field (fluid)	border-bottom	`$border-subtle` *
	Field text	text-color	`$text-disabled`
Read-only	Field (default)	background	transparent
	Field (fluid)	background	`$field` *
	Field text (default)	text-color	`$text-primary`
	Field text (fluid)	text-color	`$text-secondary`
	Field	border-bottom	`$border-subtle` *

Examples of text area states in the default style

Text input labels and field text should be set in sentence case, with only the first word in a phrase and any proper nouns capitalized. Text input labels should be three words or less.

Element	Font-size (px/rem)	Font-weight	Type token
Label	12 / 0.75	Regular / 400	`$label-01`
Field text	14 / 0.875	Regular / 400	`$body-compact-01`
Helper text	12 / 0.75	Regular / 400	`$helper-text-01`
Invalid and warning message	12 / 0.75	Regular / 400	`$label-01`

Default text input structure

Element	Property	px / rem	Spacing token
Label	margin-bottom	8 / 0.5	`$spacing-03`
Helper text	margin-top	4 / 0.25	`$spacing-02`
Field text	padding-left, padding-right	16 / 1	`$spacing-05`
Field	border-bottom	1px	–
Focus	border	2px	–
Invalid	border	2px	–

Structure and spacing measurements for default text input | px / rem

Fluid text input structure

Element	Property	px / rem	Spacing token
Label	padding-bottom	4 / 0.25	`$spacing-02`
Field	height	64 / 4	`$spacing-10`
	padding-left, padding-right	16 / 1	`$spacing-05`
	padding-top, padding-bottom	13 / 0.8125	–
	border-bottom	1px	–
Focus	border	2px	–
Invalid	border	2px	–

Structure and spacing measurements for fluid text input | px / rem

Element	Property	px / rem	Spacing token
Label	margin-bottom	8 / 0.5	`$spacing-03`
Helper text	margin-top	4 / 0.25	`$spacing-02`
Field text	padding-left, padding-right	16 / 1	`$spacing-05`
Field	border-bottom	1px	–
Focus	border	2px	–
Invalid	border	2px	–
View icon	padding-left, padding-right	16 / 1	`$spacing-05`
State icon	padding-left	16 / 1	`$spacing-05`
	padding-right	8 / 0.5	`$spacing-03`

Structure and spacing measurements for default password input | px / rem

Element	Property	px / rem	Spacing token
Label	margin-bottom	8 / 0.5	`$spacing-03`
Helper text	margin-top	4 / 0.25	`$spacing-02`
Field text	padding-left, padding-right	16 / 1	`$spacing-05`
Field	border-bottom	1px	–
Focus	border	2px	–
Invalid	border	2px	–
View icon	padding-left, padding-right	16 / 1	`$spacing-05`
State icon	padding-left, padding-right	16 / 1	`$spacing-05`

Structure and spacing measurements for fluid password input | px / rem

Default text area structure

Element	Property	px / rem	Spacing token
Label	margin-bottom	8 / 0.5	`$spacing-03`
Field	height	varies	–
	padding-left, padding-right	16 / 1	`$spacing-05`
	padding-top, padding-bottom	11 / 0.6875	–
	border-bottom	1px	–
Focus	border	2px	–
Helper text	margin-top	4 / 0.25	`$spacing-02`

Structure and spacing measurements for default text area | px / rem

Fluid text area structure

Element	Property	px / rem	Spacing token
Label	margin-bottom	4 / 0.25	`$spacing-02`
Field	height	varies	–
	padding-left, padding-right	16 / 1	`$spacing-05`
	padding-top, padding-bottom	11 / 0.6875	–
	border-bottom	1px	–
Focus	border	2px	–

Structure and spacing measurements for fluid text area | px / rem

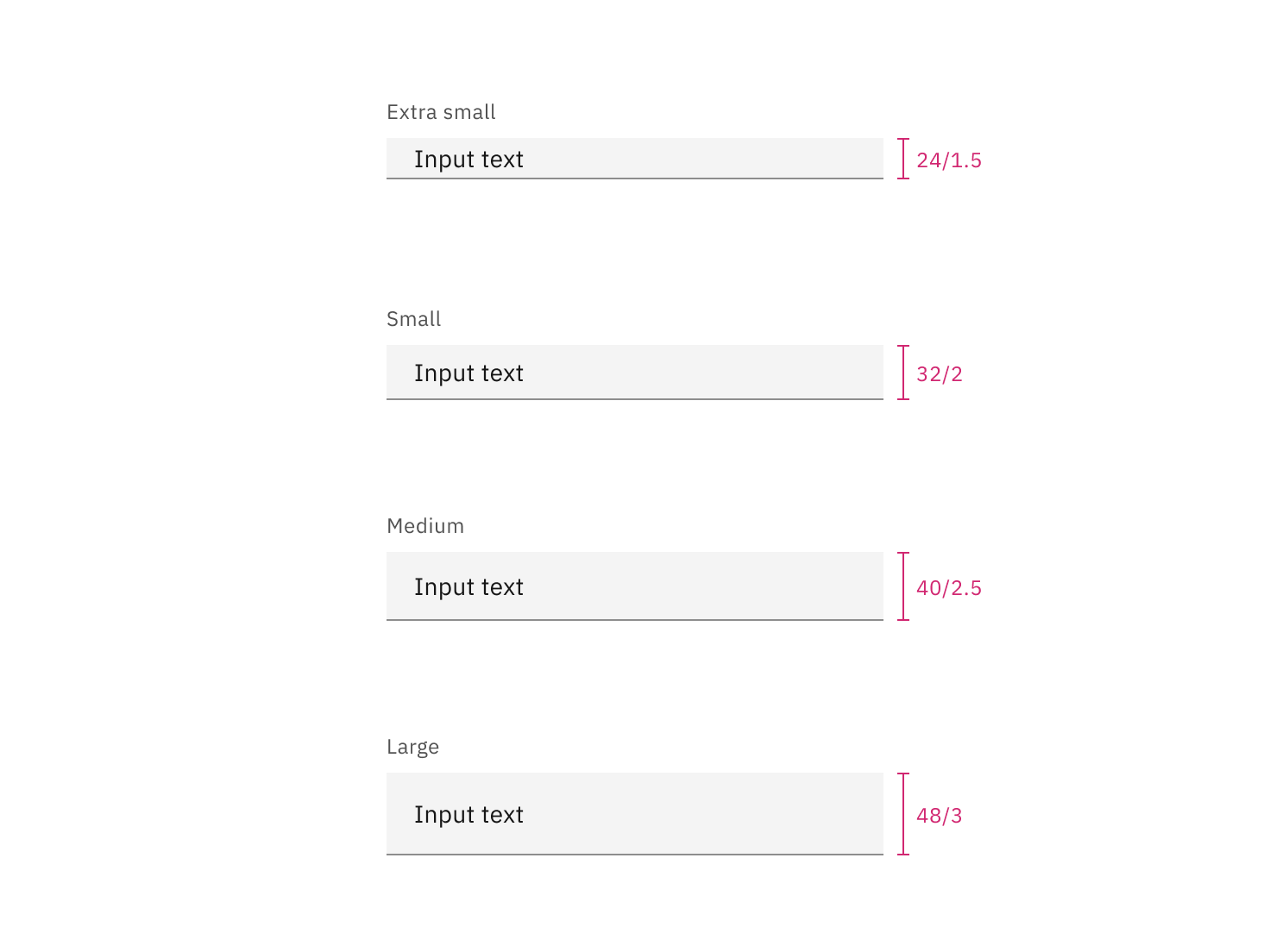

These sizes apply only to the default style of text and password input.

Element	Size	Height (px / rem)
Input	Small (sm)	32 / 2
	Medium (md)	40 / 2.5
	Large (lg)	48 / 3

Text input default style sizes | px / rem

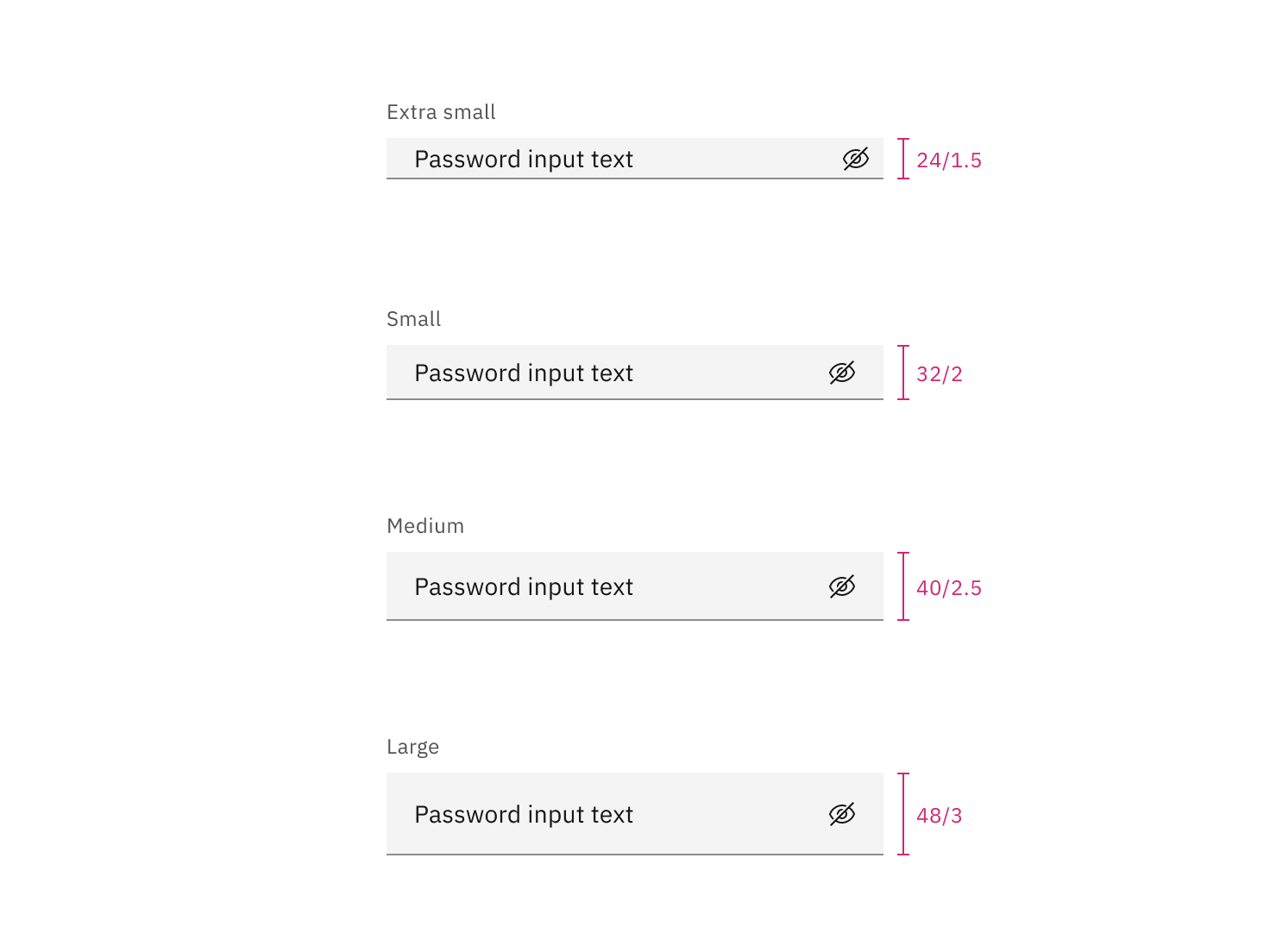

Password input default style sizes | px / rem

The following are the unique styles applied to the component when the AI label is present. Unless specified, all other tokens in the component remain the same as the non-AI variant. For more information on the AI style elements, see the Carbon for AI guidelines.

Element	Property	Token / Size
Linear gradient	start	`$ai-aura-start-sm`
	stop	`$ai-aura-stop`
Field	border-bottom	`$ai-border-strong`
	background color	`$field`*
AI label	size	mini

* Denotes a contextual color token that will change values based on the layer it is placed on.

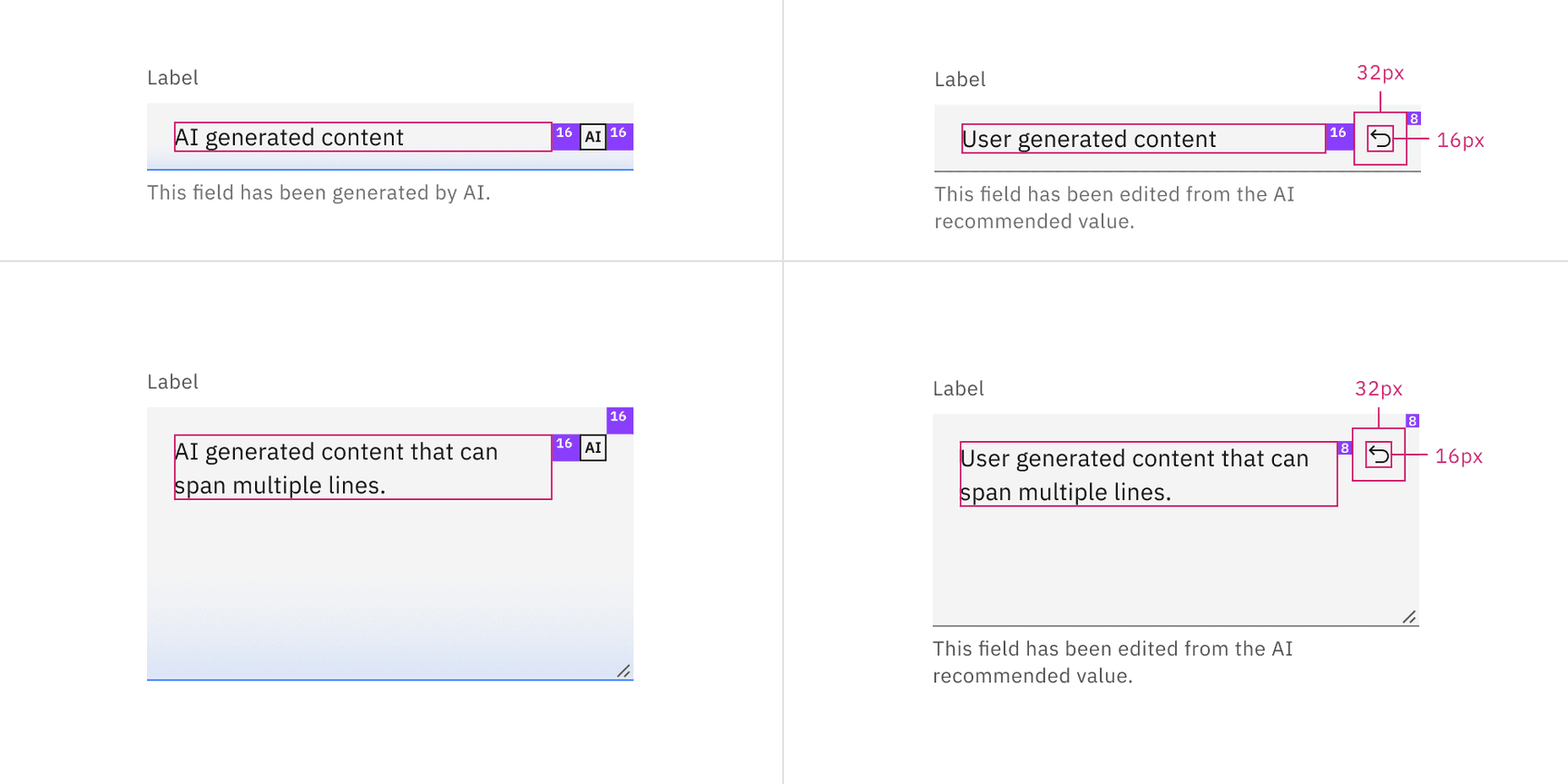

Default text input and text area AI example
