Checkbox

Element	Property	Color token
Group label	text color	`$text-secondary`
Checkbox label	text color	`$text-primary`
Checkbox:unchecked	border	`$icon-primary`
	background-color	transparent
Checkbox:checked	background-color	`$icon-primary`
	checkmark	`$icon-inverse`
Helper text	text color	`$text-secondary`

Checkbox states: unselected (top), selected (middle), and indeterminate (bottom)

State	Element	Property	Color token
Focus	Checkbox	border	`$focus`
Disabled	Label	text color	`$text-disabled`
	Checkbox	border	`$icon-disabled`
		background	`$icon-disabled`
Read-only	Label	text color	`$text-primary`
	Checkbox	border	`$icon-disabled`
		inner fill	`$icon-primary`
Error	Label	text color	`$text-primary`
	Checkbox	border	`$support-error`
	Error message	text color	`$text-error`
	Error icon	svg	`$support-error`
Warning	Label	text color	`$text-primary`
	Checkbox	border	`$icon-primary`
	Warning message	text color	`$text-primary`
	Warning icon	svg	`$support-warning`
		inner fill	`$black`

Focus, disabled, read-only, error, and warning states of checkbox

Unselected, selected and indeterminate checkboxes across focus, disabled, read-only, error, and warning states.

Checkbox labels and group labels should be sentence case, with only the first word in a phrase and any proper nouns capitalized. Checkbox labels and group labels should not exceed three words.

Element	Font-size (px/rem)	Font-weight	Type token
Group label	12 / 0.75	Regular / 400	`$label-01`
Checkbox label	14 / 0.875	Regular / 400	`$body-compact-01`
Helper text	12 / 0.75	Regular / 400	`$helper-text-01`
Error message	12 / 0.75	Regular / 400	`$label-01`
Warning message	12 / 0.75	Regular / 400	`$label-01`

Element	Property	px / rem	Spacing token
Checkbox	height & width	16px	–
	border	1px	–
Checkbox:focus	border	2px	–
	border inset	1px	–
Group label	margin-bottom	8 / 0.5	`$spacing-03`
Checkbox label	padding-left	8 / 0.5	`$spacing-03`
Checkbox item	margin-bottom	4 / 0.25	`$spacing-02`

Structure and spacing measurements for a checkbox group | px / rem

Structure and spacing measurements for vertical and horizontal checkbox groupings | px / rem

The only style modification an AI variant of the checkbox has is the addition of the AI label. All other tokens in the component remain the same as the non-AI variants.

For more information on the AI style elements, see the Carbon for AI guidelines.

Element	Property	Token / Size
AI label	size	mini

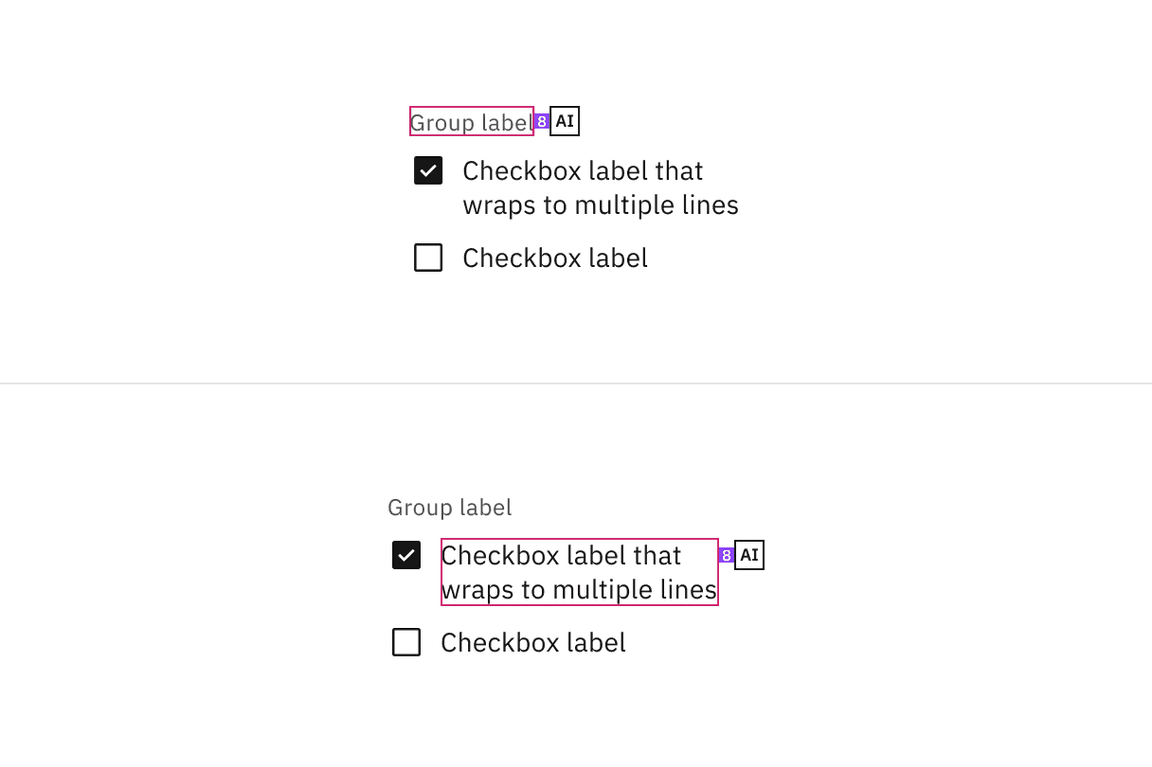

Structure and spacing measurements for checkbox with AI presence.
